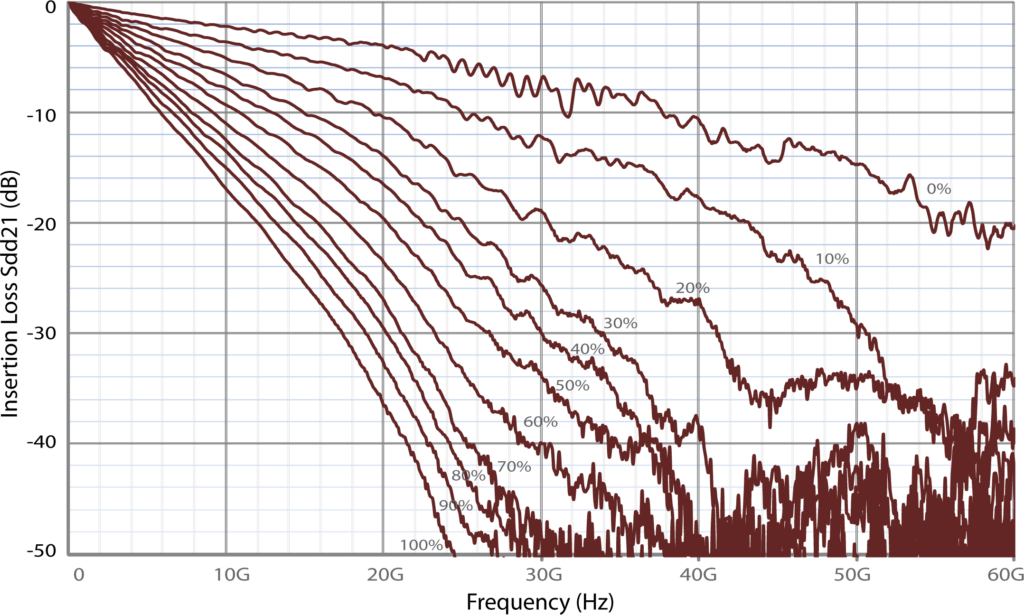

Sdd21
Features
- 3.3dB ~ 27dB @16GHz Nyquist / 56Gbps-PAM4
- 2.92mm connector
Downloads
- S-Parameters (zipped, MS-Excel file)
- Touch Stone S4P (zipped, 0% – 100% multiple files)
- Operation Manual
- Remote Command Manual
- Control Software Package for Windows
Specifications
| Transmission Line | Single-end x2 for Differential, DC coupled 50ohm |
| Connectors | 2.92mm (K) female |
| Input Tolerance | 10Vpp-max |
| Delay | 1.58ns +/- 70ps approx. |
| Remote Control | USB2.0 IEEE Std488/SCPI compatible |
| Power | AC 85V-246V 50/60Hz 70A max |
| Dimensions | 190(w)x110(h)x400(d)mm |
