Features
- Continuously Variable
- Passive
- DC Coupled
- Repeatable & Stable
- Remote Controllable
Applied with Artek’s unique technology for analog / mixed signal and advanced electro-magnetics, the CLE1500, CLE1200 & CLE1000 are designed as a variable Inter-Symbol-Interference (ISI) channel for high speed serial interface stress tests. It controls the insertion loss continuously at 0.1% step (1,000 steps) in its dynamic range for fine adjustment. The differential transmission lines are totally passive and DC coupled. The adjusted insertion loss amount is reliably repeatable and stable for secure test results. The control is done by the volume dial on the front panel and/or PC remote via USB (and Ethernet) for automated calibration. Five (5) models of different loss range are prepared to cover various data rates. The CLE1500, CLE1200 & CLE1000 are convenient ISI channel, applicable for various standard stress tests and compliance tests.
Principle
The variable insertion loss is achieved by controlling the electromagnetic field spatially around the transmission lines, which are electrically isolated from any components. Patent No.: US 10,200,216 B2
Models
Insertion Loss Range by Models
| Model | CLE1500 | CLE1200-M2V | CLE1000-H2K | CLE1000-S2 | CLE1000-A2 |
|---|---|---|---|---|---|
| 56GHz Nq. | 5-43dB | – | – | – | – |
| 40GHz Nq. | 3.7-30dB | 5.3-52dB | – | – | – |
| 28GHz Nq. | 2.7-21dB | 2.5-34dB | 6.5dB < | 9dB < | – |
| 16GHz Nq. | 1.7-14dB | 1.4-20dB | 3.3-27dB | 3.5-44dB | 13dB < |
| 12.5GHz Nq. | 1.5-12dB | 1.2-16dB | 2.8-21dB | 2.9-33dB | 10dB < |
| 8GHz Nq. | 1.1-8dB | 0.9-10dB | 1.9-13dB | 2.0-23dB | 6dB < |
| 2.5GHz Nq. | – | <0.3 | 0.7-4.5dB | 0.8-8.2dB | 2.0-27dB |
| 0.75Hz Nq. | – | – | <2.0 | <3.0 | 0.7-11dB |
Options

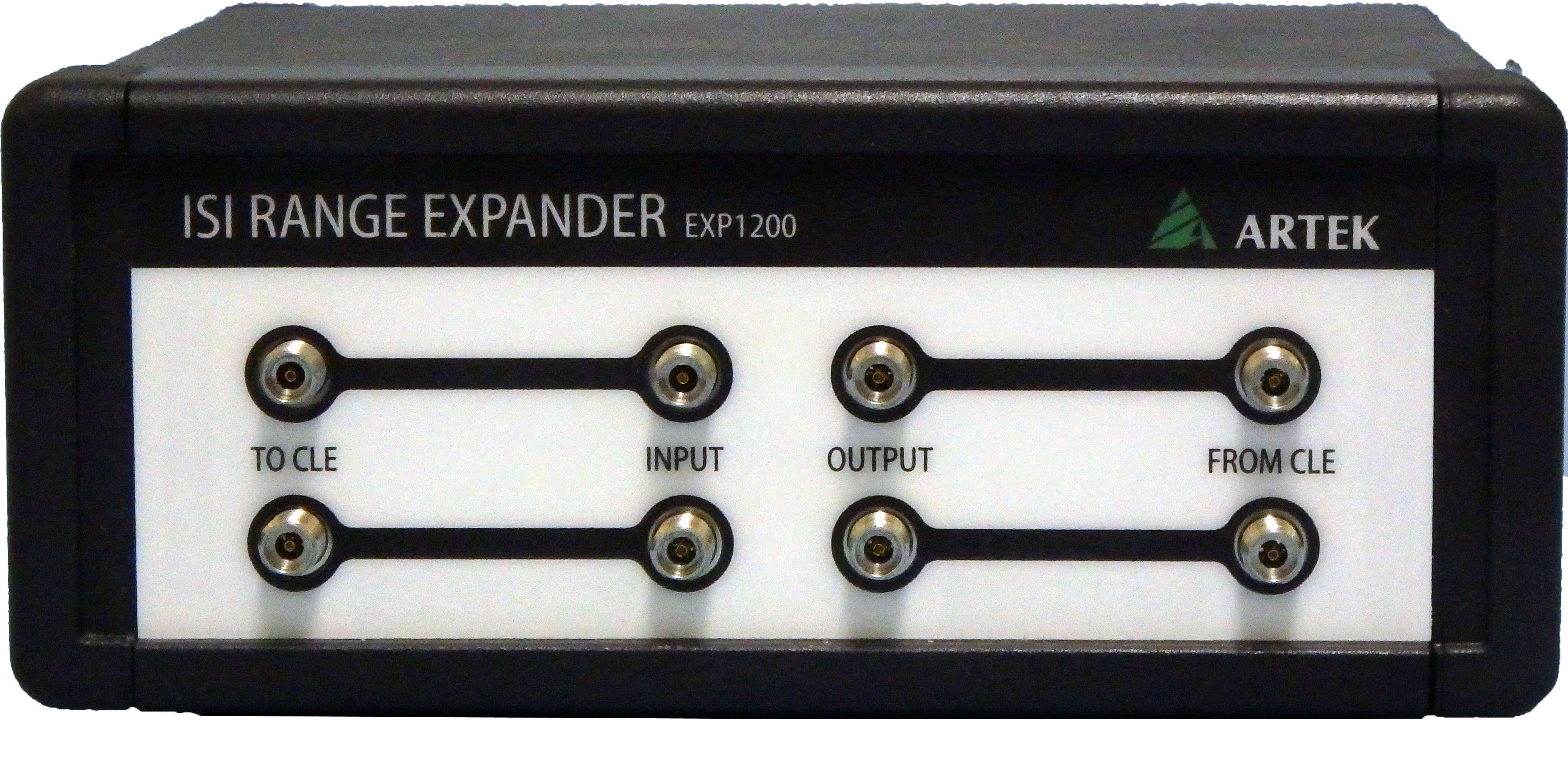

IL Extender

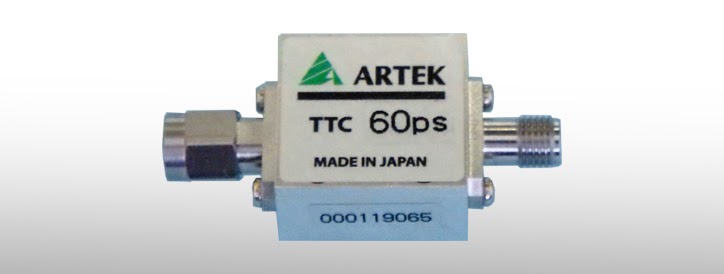

Transition Time Converters
