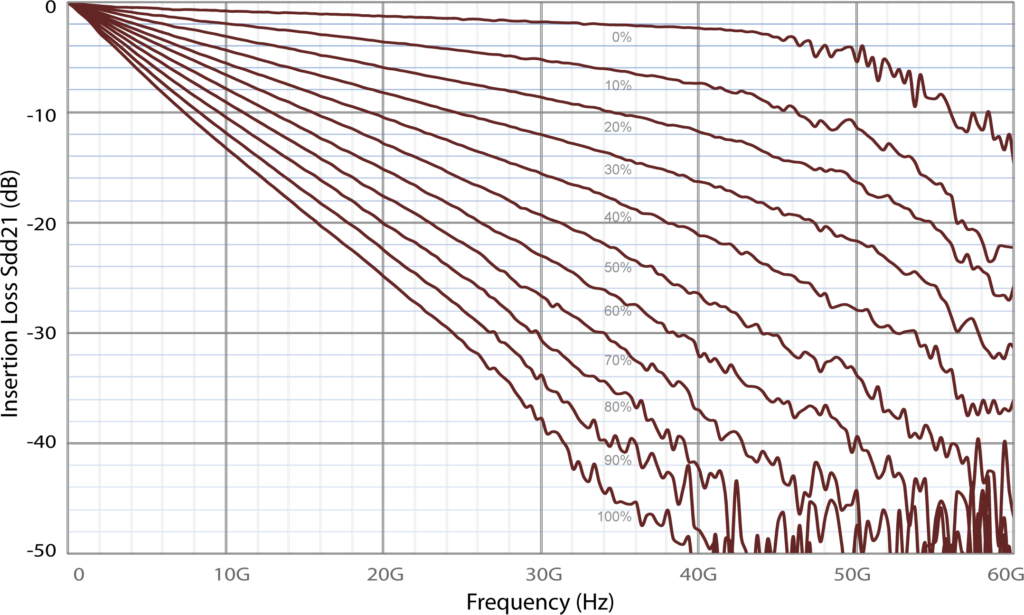

Sdd21
Features
- 2.5dB ~ 34dB @28GHz Nyquist / 112Gbps-PAM4
- 1.85mm connector
Downloads
- S-Parameters (zipped, MS-Excel file)
- Touch Stone S4P (zipped, 0% – 100% multiple files)
- Operation Manual
- Remote Command Manual
- Control Software Package for Windows
Specifications
| Transmission Line | Single-end x2 for Differential, DC coupled 50ohm |
| Connectors | 1.85mm (V) female |
| Input Tolerance | 10Vpp-max |
| Delay | 1.13ns +/-40ps approx. |
| Remote Control | TCP/IP & USB2.0 IEEE Std488/SCPI compatible |
| Power | AC 85V-246V 50/60Hz 70A max |
| Dimensions | 200(w)x120(h)x420(d)mm |
